Lc 55 Three-doors (18-25 Mm)
Lc 55 Three-doors (18-25 Mm)
Product Codes

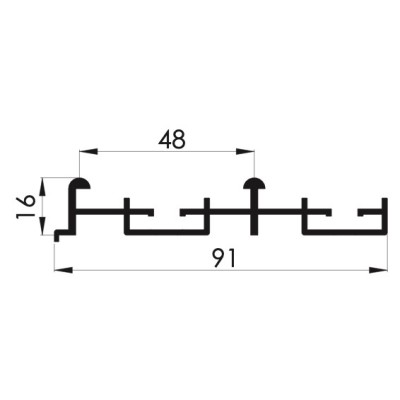

Technical Drawing
Assembly Diagram
Lc 55 Three-doors (18-25 Mm)
|
Code
T(mm)
Box
Volume (m³)
Weight (kg)
Weight Birim / Unit
|
|
L-1254
18-25
4
0,009
17,000
Takım
|

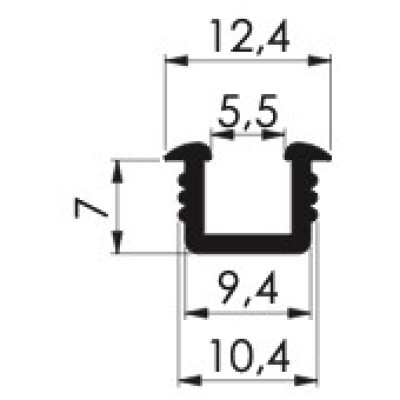

| Teknik Çizim / Technical Drawing | Code | T (mt) | Bağ / Band | Volume (m³) | Weight (kg) | Unit |
|---|---|---|---|---|---|---|
|
L-3172-1 | 2.0 | 8 | 0,003 | 1,624 | Adet |
| L-3172-2 | 2.5 | 8 | 0,004 | 2,000 | Adet | |
| L-3172-3 | 3.0 | 8 | 0,004 | 2,200 | Adet | |
|
L-3703 | 3.0 | 50 | 0,023 | 0,200 | Adet |
No technical drawing is available for this product.
No assembly diagram is available for this product.
