Starax Product Groups Sliding Systems Sliding Door Systems Lc 120 With Single Soft Closing
Lc 120 With Single Soft Closing


  •
    1 Kutu İçi Miktar - Box Quantity
    120 kg Ağırlık - Weight
    18-60 mm Panel Kalınlık - Panel Thickness
    Ahşap / Wooden
    Çift Yön Yavaşlatıcı / Double Soft Closing
    Dikey Ayarlı / Vertical Adjustable
    Sürme Kapı Sistemi / Sliding Door System
    Sürme Kapı Üstten / Top Mounted Sliding Door
    Yağlı Piston Sistemi / Oil Damper System







Product Codes

Technical Drawing

Assembly Diagram

Lc 120 With Single Soft Closing
Code
T(mm)
Box
Volume (m³)
Weight (kg)
Weight Birim / Unit
L-2121
18-60
20
0,002
0,844
Takım




Teknik Çizim / Technical Drawing Code T (mt) Bağ / Band Volume (m³) Weight (kg) Unit

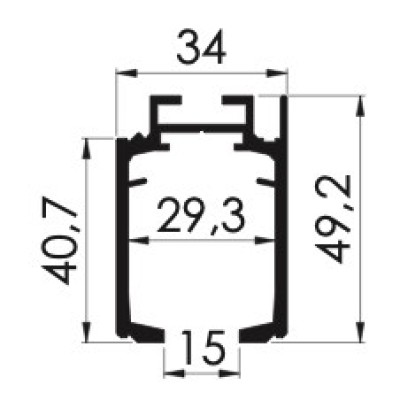

Alüminyum Üst Ray / Upper Rail
Alüminyum Üst Ray / Upper Rail
 L-3175-1 2.0 8 0,004 2,100 Adet
L-3175-2 0,004 2,625 Adet
L-3175-3 3.0 8 0,005 3,150 Adet

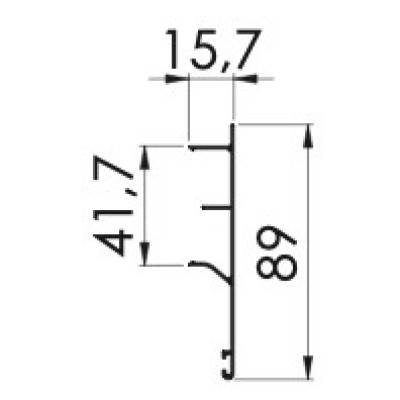

Alm. Üst Ray Kapak / Upper Rail Cover
Alm. Üst Ray Kapak / Upper Rail Cover
 L-3176-1 2.0 10 0,016 0,768 Adet
L-3176-3 3.0 10 0,002 1,115 Adet
PVC Alt Ray / Bottom Rail
PVC Alt Ray / Bottom Rail
 L-3703 3.0 50 0,023 0,200 Adet

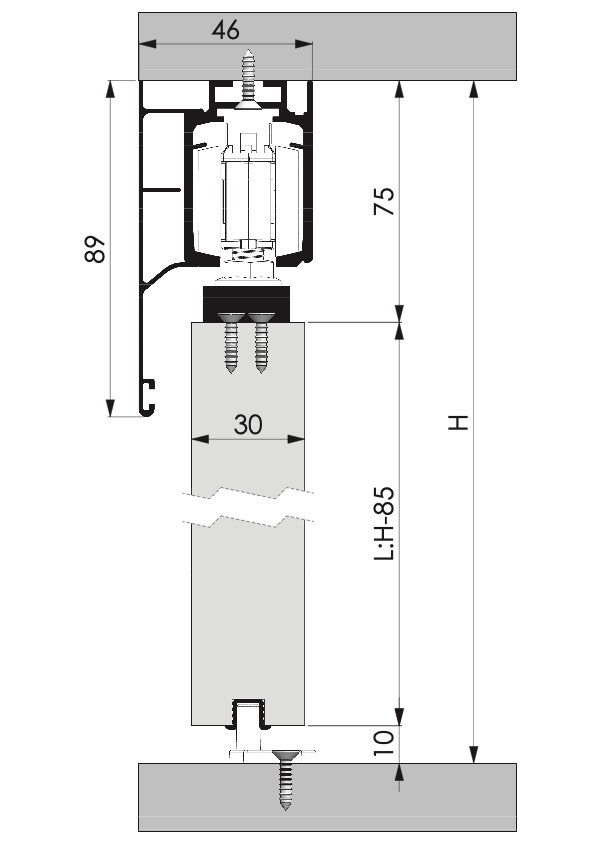

Teknik Çizim: 2f5f03b3033e5410a83028b8cd777bce.jpeg

Assembly File:

Download PDF
